ADA Bathroom Floor Plans

Which Bathrooms Do ADA Guidelines Apply To?

The ADA guidelines apply to bathrooms of all sizes in commercial buildings and public places. These can range from single-user bathrooms found at small businesses, such as a laundromat or cafe, to medium-sized bathrooms with several stalls in a park or restaurant, to large multi-user bathrooms in commercial buildings or entertainment venues.

It's important to note that the decision as to whether a business must have an ADA-compliant bathroom depends on factors such as business size, construction or renovation date, and local building codes. Business owners should consult with local authorities or accessibility experts to understand the specific circumstances and regulations in their area.

Private homes and buildings outside the United States are not obligated to adhere to ADA guidelines. However, the guidelines can serve as a valuable reference when designing bathrooms that prioritize accessibility.

ADA Compliant Bathroom Doors

Wider doors are a hallmark of ADA bathroom floor plans, allowing for easy entry and exit for individuals using wheelchairs or other mobility aids. The essential requirements include having doors wide enough to accommodate wheelchair users, with a minimum clear width of 32 inches (about 80 cm) when the door is open at 90 degrees. The force required to open the door should be within specified limits, typically between 5 and 8.5 pounds (2.27 to 3.86 kg). Lever handles are often recommended for ease of use and should be mounted between 34 and 48 inches (86 to 121 cm) above the finished floor.

Bathroom Fixtures for ADA Compliance

Bathroom fixtures are crucial in creating inclusive environments that prioritize equal access for individuals with disabilities. Let’s review some of the primary ADA considerations regarding bathroom fixtures.

• Toilet: The ADA sets standards for toilet height, location, and surrounding space to accommodate individuals with mobility challenges. Key requirements include installing toilets at a higher height for easier use, typically between 17 and 19 inches (43 to 48 cm) from the floor. Clear floor space around the toilet is essential for wheelchair maneuverability, with a minimum of 48 inches (about 122 cm) in front of the toilet. Grab bars must be present on at least one side of the toilet, positioned between 33 and 36 inches (84 to 91 cm) above the floor, and extend at least 54 inches (137 cm) along the side wall. Additionally, flush controls should be located on the open side of the toilet, within easy reach, and operate with a maximum force of five pounds (2.3 kg) to accommodate users with varying degrees of strength and mobility.
• Urinals: ADA bathroom floor plan guidelines require installing at least one compliant urinal when a bathroom contains multiple urinals. Mount the compliant urinal at a maximum rim height of 17 inches (about 43 cm) from the floor. Adequate clear floor space in front of the urinal, at least 30 x 48 inches (76 x 122 cm), is required to accommodate individuals using wheelchairs. Additionally, place flush controls within a reachable range.
• Sinks: ADA-compliant sinks are designed with adequate knee clearance beneath them, allowing individuals using wheelchairs to approach comfortably. Mount the sink between 29 and 34 inches (about 74 to 86 cm) from the floor. Faucet controls must be easy to operate with one hand and not require tight grasping or twisting. Additionally, allow at least 30 x 48 inches (76 x 122 cm) of clear floor space in front of the sink for individuals using wheelchairs to approach comfortably.

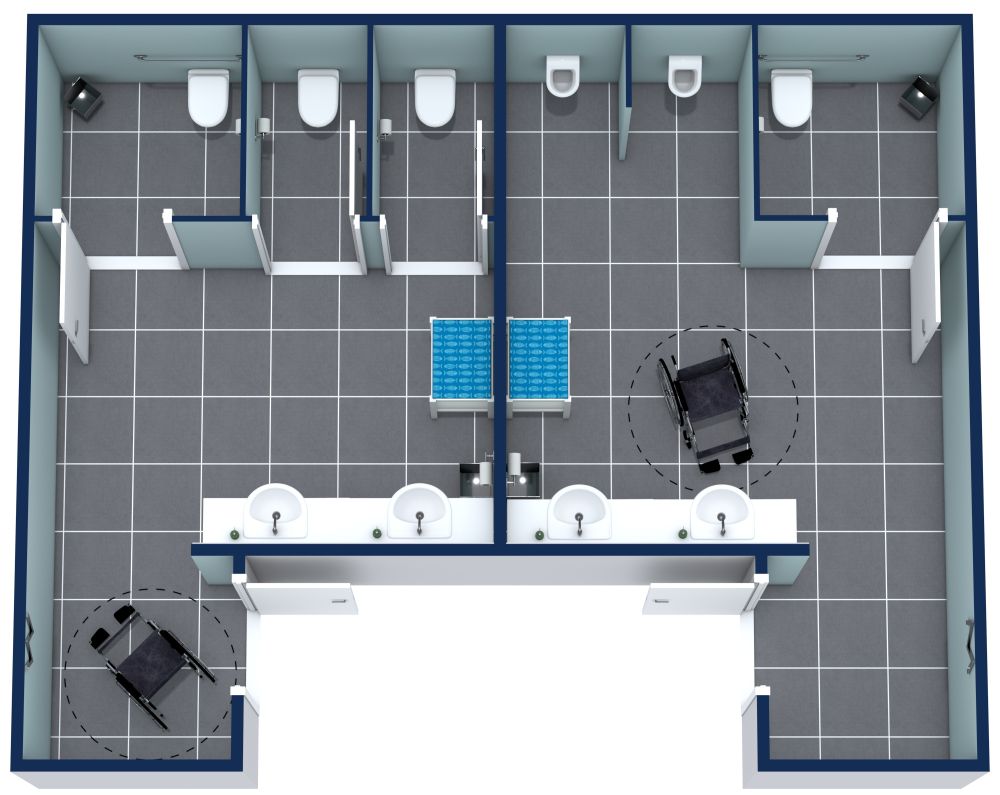

Multi-User Bathroom Considerations

Bathrooms designed for multiple users must adhere to specific ADA requirements to ensure inclusivity:

• At least one wheelchair-accessible stall is mandatory.
• If there is more than one urinal, at least one should comply with ADA standards.
• For any sinks and mirrors outside of stalls, ensure that there is at least one accessible fixture available.

Stall dimensions and considerations

• Stall doors should have a minimum clear width of 32 inches (about 80 cm) when open at a 90-degree angle to provide ample space for individuals with mobility aids.
• The depth of the stall should be at least 60 inches (about 1.5 m) from the rear wall to the door, and the width should be at least 60 inches (1.5 m), allowing enough room for maneuverability.
• Grab bars should be installed on at least one side wall and, for deeper stalls, on both sides.
• If provided, mount coat hooks and shelves at accessible heights.

Summary

The ADA's design standards for accessible bathrooms foster inclusivity and equal access. Whether in public areas, workplaces, or commercial buildings, these guidelines ensure that individuals with disabilities can navigate and utilize bathroom facilities independently. RoomSketcher offers a range of templates for ADA bathroom floor plans that are tailored to meet accessibility standards. These templates provide a practical starting point for creating bathrooms that accommodate diverse needs.
